How to Test 1P3W or Multi Phase DUT

Since OMNIA II can only do L - N with no voltage on N we are not able to power up the DUT that requires L-L-N connections like the diagram 2 and 3 below. To use OMNIA II equipment they would need to do the following:

  • Power up their DUT outside of OMNIA II system
  • Use the probe H and probe L to connect the MD as shown in the image to its respective location in the system
  • Do all the switching for Reverse (S2) and Neutral (S3) either manually or some external means
  • OMNIA II would be used as a big metering circuit for test case 2 and 3

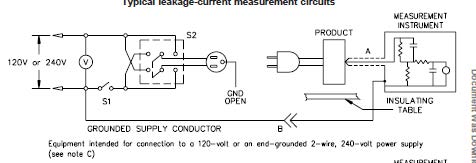

This test we can do without any issues.

How to Test 1P3W or Multi Phase DUT - Figure 1How to Test 1P3W or Multi Phase DUT - Figure 1

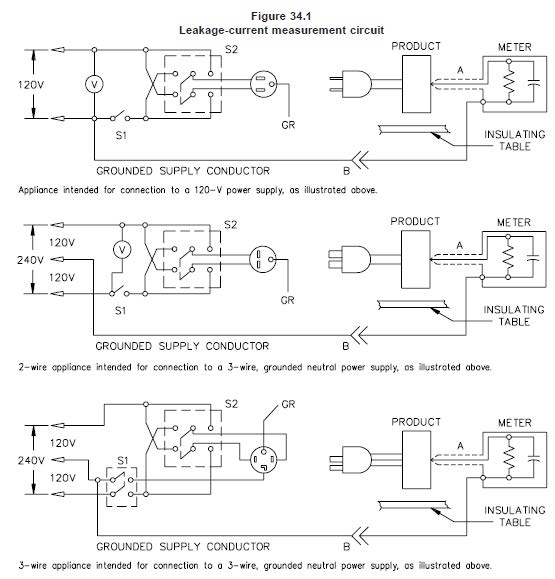

But number 2 and 3 are not possible without additional external controls.

How to Test 1P3W or Multi Phase DUT - Figure 2How to Test 1P3W or Multi Phase DUT - Figure 2

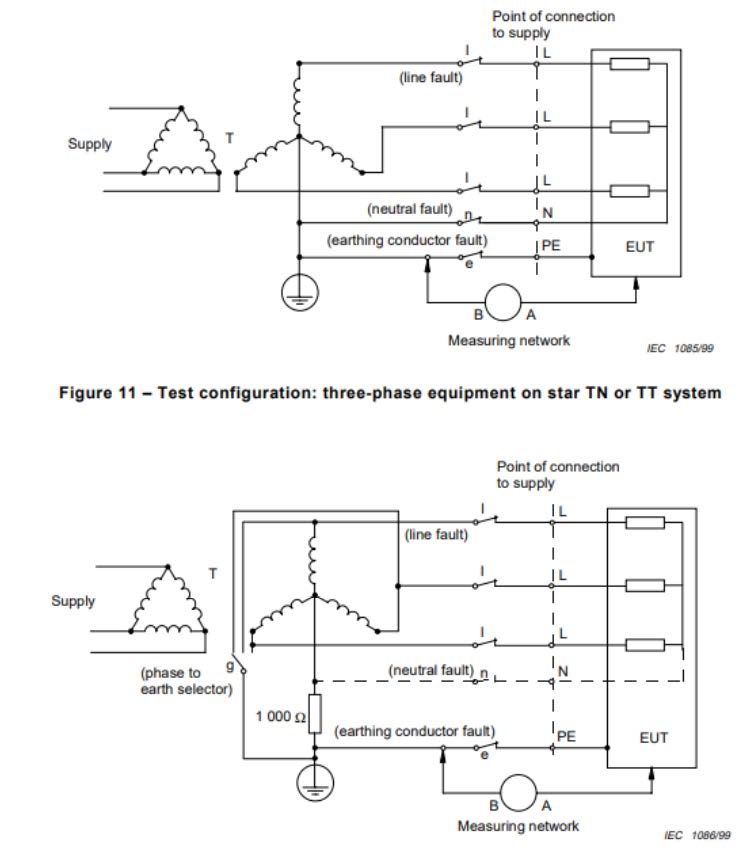

3 - Phase leakage current according to IEC 60990

How to Test 1P3W or Multi Phase DUT - Figure 3How to Test 1P3W or Multi Phase DUT - Figure 3
