SYSTEM INTEGRATION RESOURCES

PLC Control Capability

Remote Input and Output ports offer a variety of test controls for easy PLC integration.

Our 9pin “D” type remote I/O ports allow for instrument control through PLC signals. In addition to having the ability to signal external instruments we offer a variety of compatible safety accessories designed to create a safe workstation.

Remote Input allows for the ability to send signals:
Test
Reset
Interlock
Memory Select
Remote Output allows for the ability to receive signals:
Pass
Fail
Propcessing
Reset
Signal Input/Output GraphicSignal Input/Output Graphic

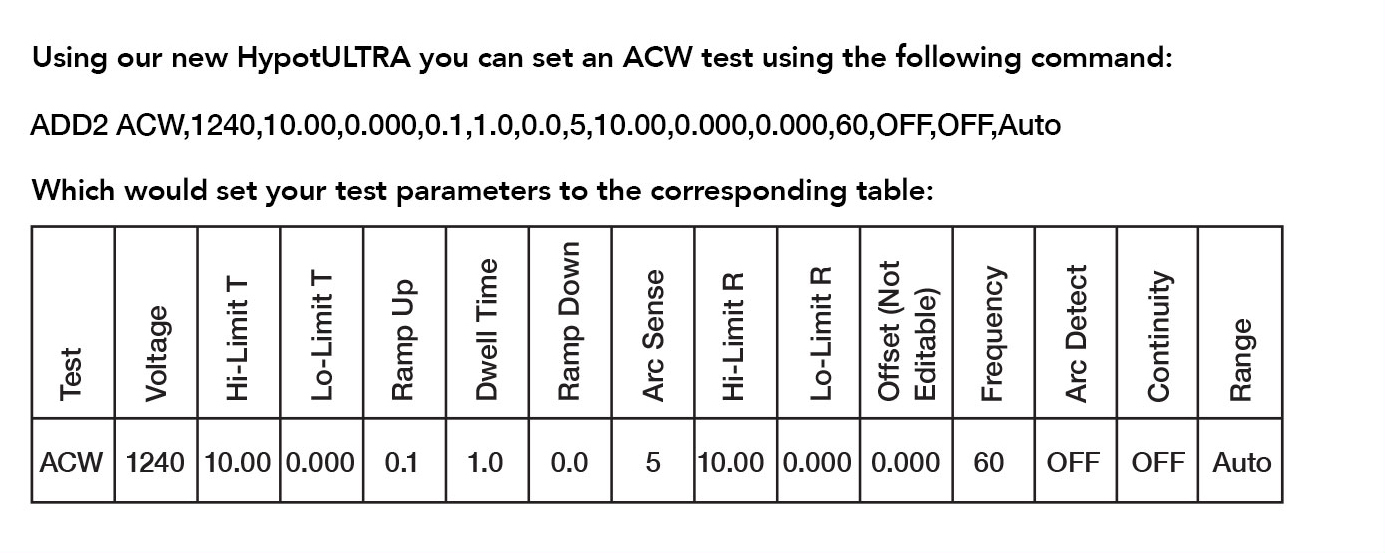

Interface Bus Commands

Simple ASCII based text commands allow for full automation of all test functions.

Our instruments can be controlled via ASCII text based commands which allow for remote programming and communication through the BUS.

Communication options include:
RS-232
USB
GPIB
Ethernet

A fill full list of commands can be found in each instruments respective manual.

Out-of-the Box Software Solutions

Withstand®

SaaS platform to remotely connect your safety tester. Improve workstation best practices by automatically saving data and increasing productivity. Program tests and review test data, anywhere, anytime.

Features and Benefits:
Barcode Connection
Test Reports
Remote Instrument Connection
Unlimited Users
Premium Add-On Features

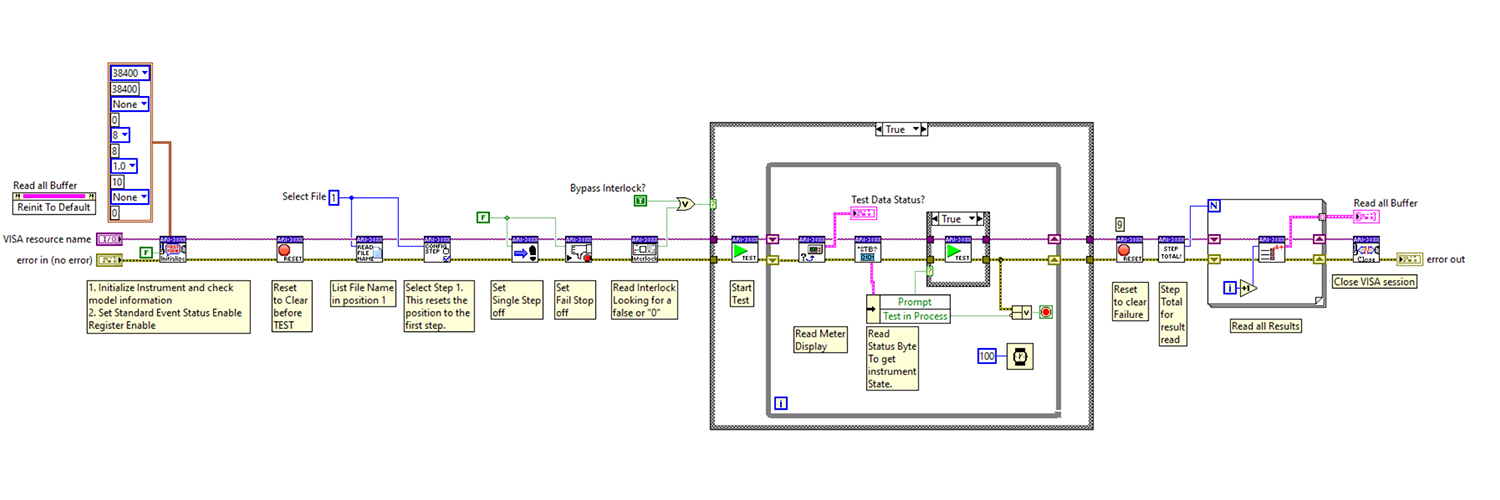

IVI/LabVIEW Drivers

Instruments drivers for customized automated control and programming. Our IVI Driver Technical Guide outlines step by step instructions on installation and implementation in LabVIEW.

IVI and LabVIEW drivers allow customers to increase performance and flexibility from simple to most complex testing applications. Interchangeability of IVI drivers allow for minimal code changing between instrument changes.

Features and Benefits:
Consistency and Scalability
Ease of use and less error prone
Plug and play (LabVIEW)
Pre-built example code
Full control of all functionality of the test instruments
